CVD Single Point Diamond Dresser - Morse taper

CVD Single Point Diamond Dresser - Morse taper

$79.00
$79.00
Sale Sold out
Taxes are included.
Carat

Delivery all over the world

Affordable Prices Without Compromise

European quality confirmed by ISO standards

Description

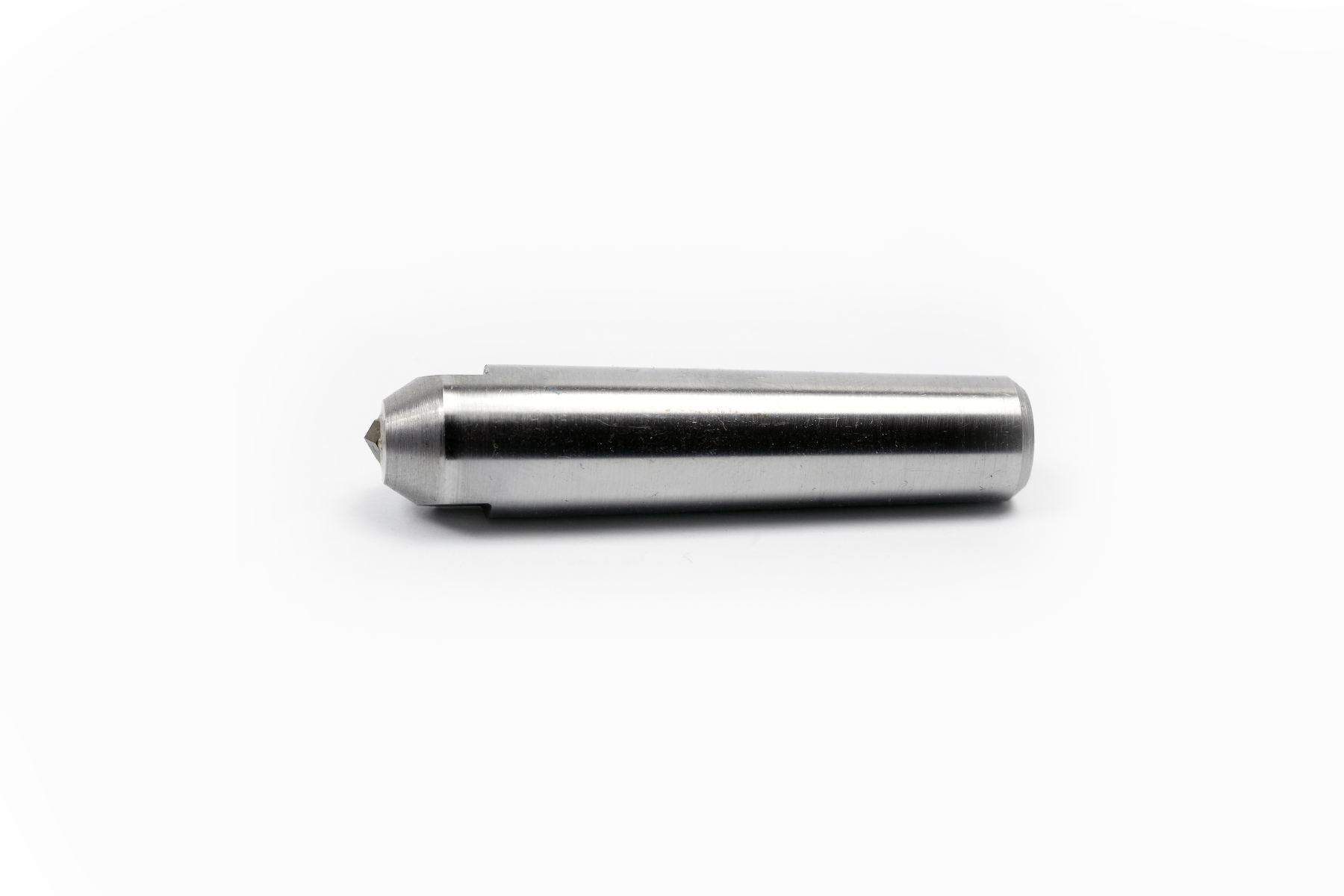

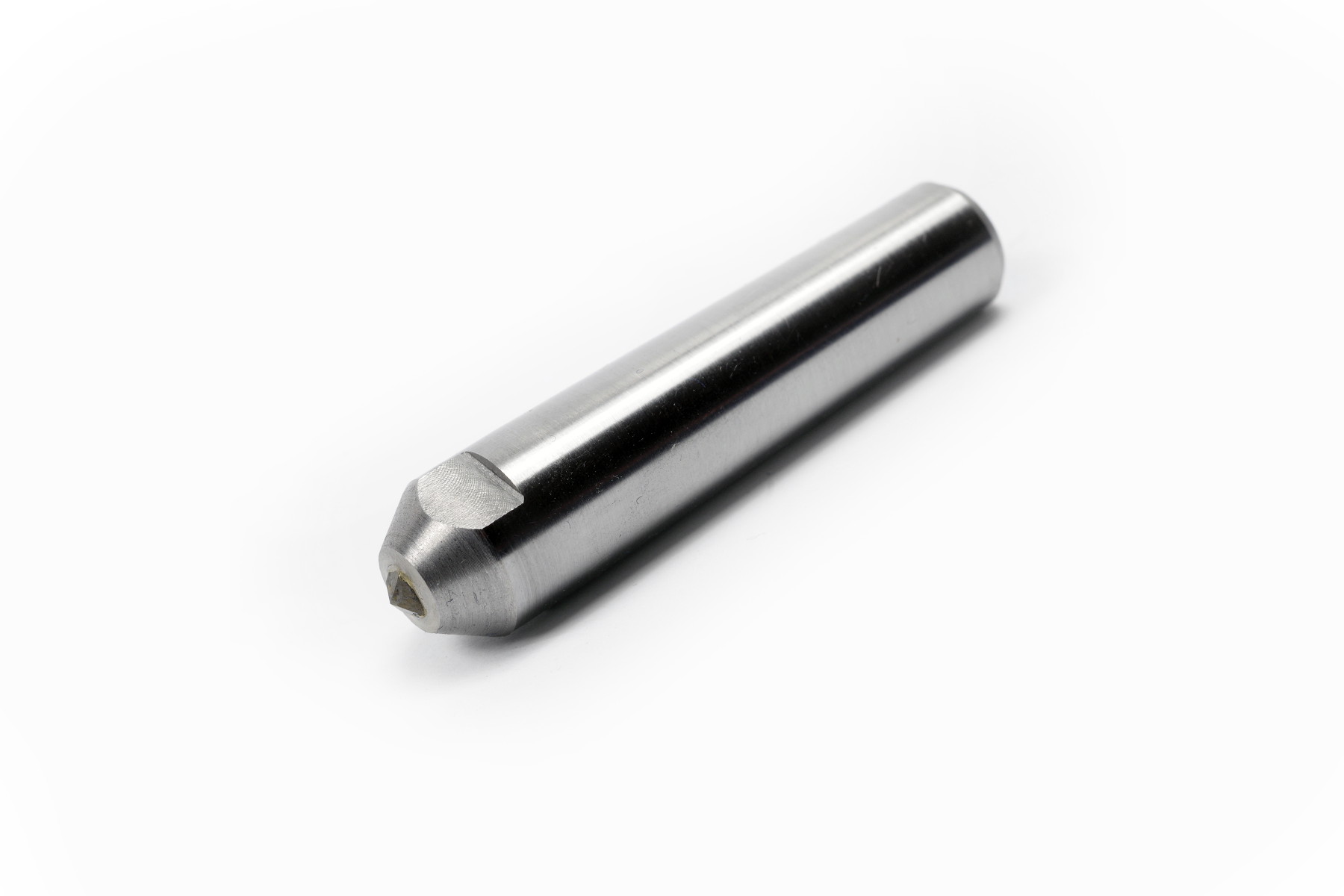

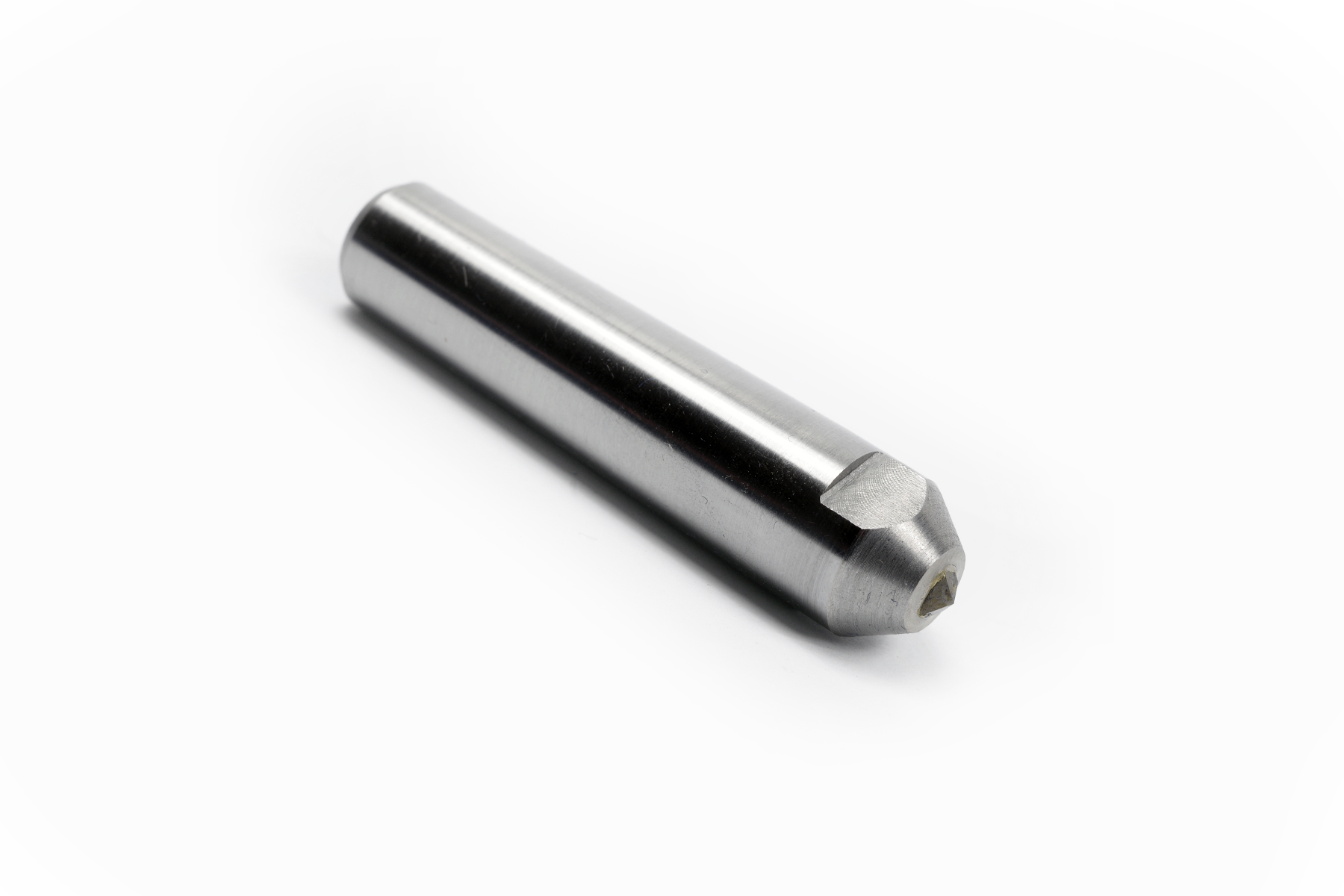

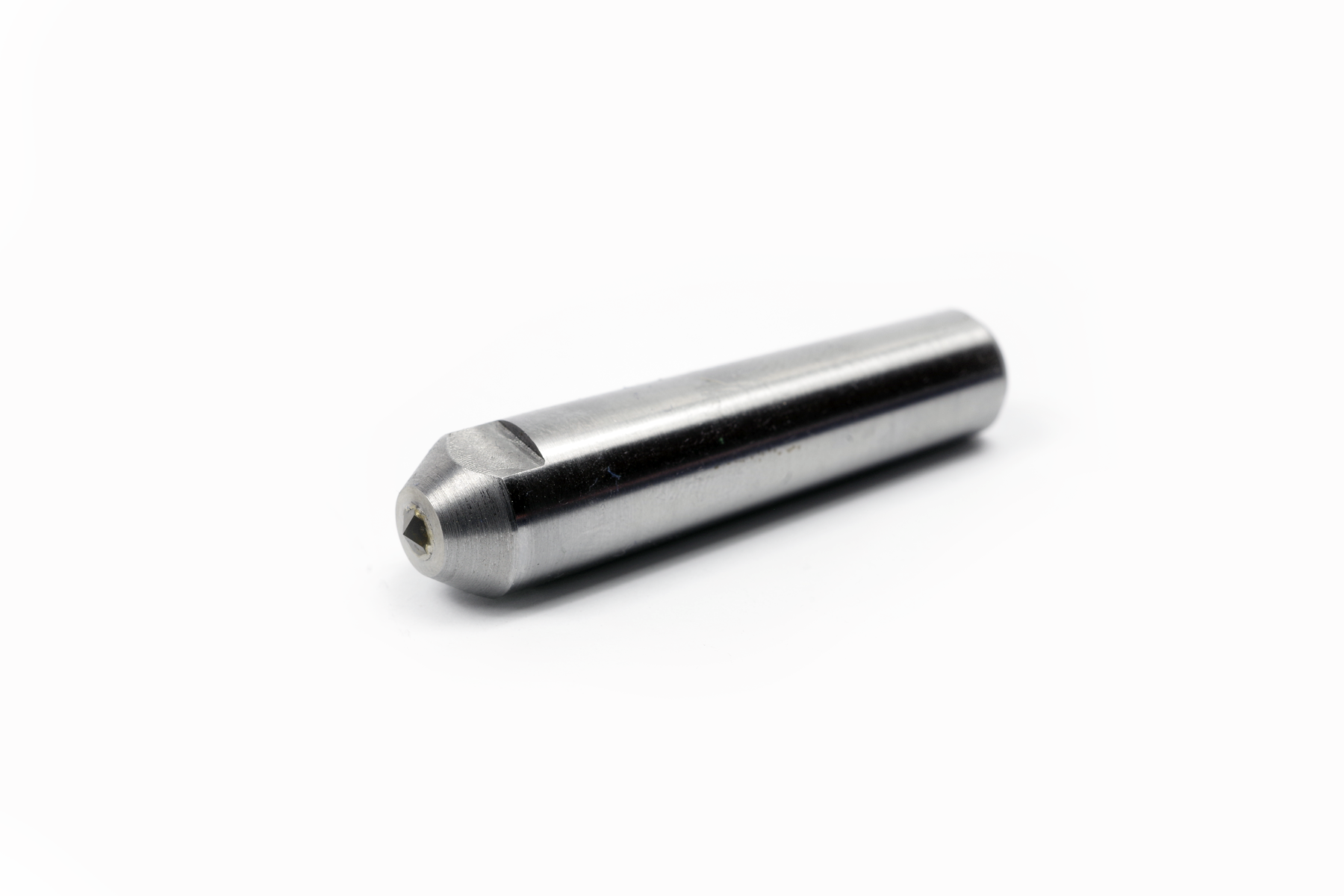

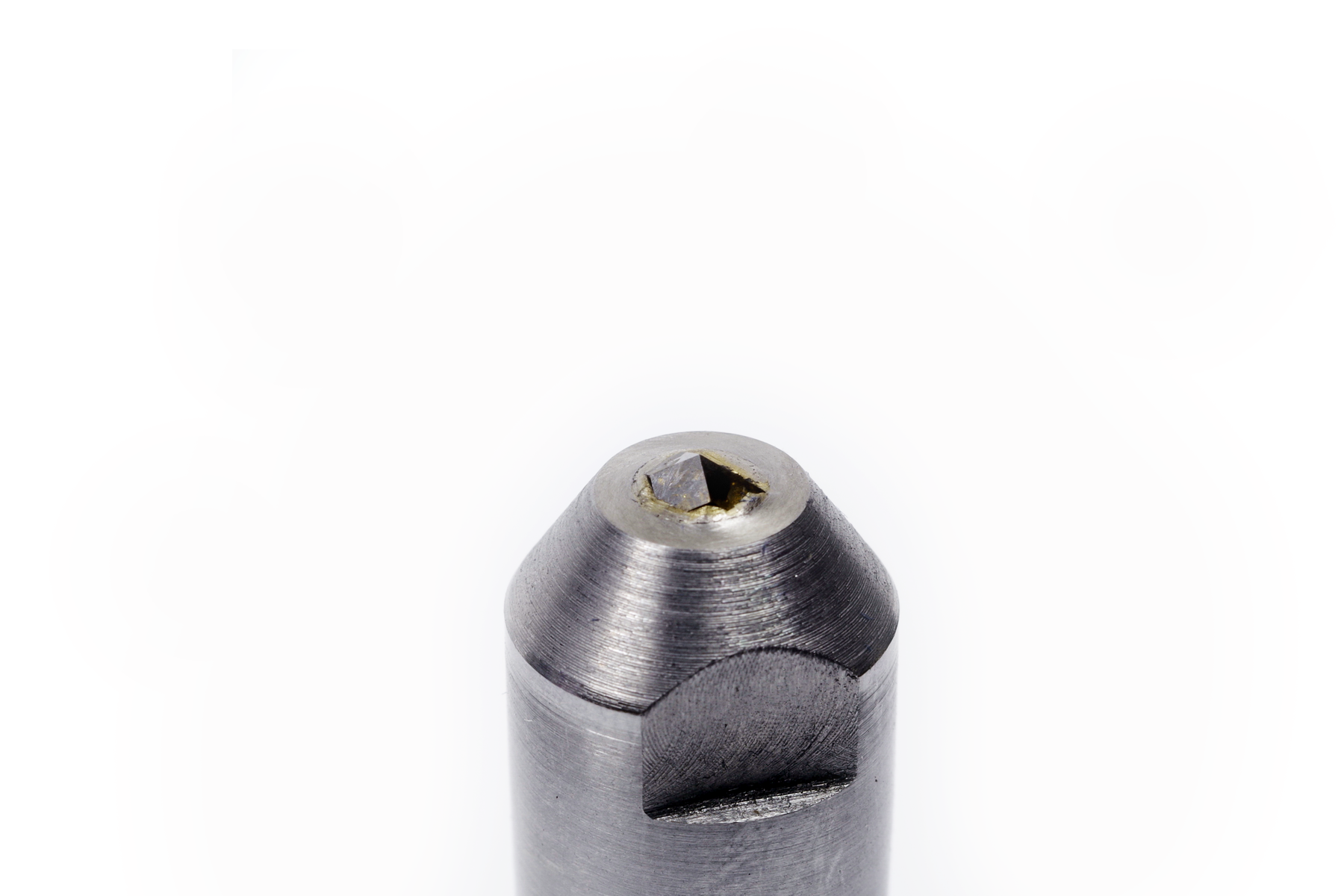

CVD Single Point Diamond Dresser with Morse taper shank for truing and dressing conventional abrasive grinding wheels (aluminum oxide Al₂O₃, silicon carbide SiC). Standard Morse taper shank (MT1) fits universal tool holders on cylindrical, surface and centerless grinding machines.

Diamond Material: CVD Polycrystalline Diamond

CVD (Chemical Vapor Deposition) diamond is grown layer by layer producing a fine polycrystalline structure with excellent toughness and broad application range. Key advantages:

  • Higher toughness - better resistance to impact and interrupted dressing passes
  • Wide applicability across vitrified, resin bond and ceramic bond grinding wheels
  • Cost-effective solution with reliable dressing performance
  • Thermally stable for demanding dressing conditions

Ideal for general-purpose grinding and high-production environments where cost-efficiency and toughness are priorities.

Applications

  • Truing and dressing vitrified, resin bond and ceramic bond grinding wheels
  • Gear grinding, bearing manufacturing, automotive components
  • Interrupted dressing passes and rough profiling

Shipping

We understand how important it is to get the tool for the job at the right time.

That's why we have made several delivery options to cover all the needs of our customers as widely as possible. Once your order is dispatched, you will receive a tracking number of the parcel with the possibility of tracking.

  • Ukrposhta delivery - 12-18 working days, depending on the destination country.
  • UPS express delivery - 7-12 working days
  • Combined shipping availability
  • Free shipping from the amount of $649
View full details

Carbide Chisels – Precision, Durability, and Excellence

Carbide chisels are indispensable tools for stone carvers, sculptors, and artisans working with materials like granite, marble, and limestone.Our carbide chisels feature a durable tip and a comfortable grip design, making them the best choice for professionals.

  • Unmatched Durability with Carbide Tips

     Equipped with premium carbide tips, our chisels deliver outstanding hardness and resistance to wear and chipping.

  • Razor-Sharp Factory Edge – No Sharpening Needed

    Each chisel comes with a razor-sharp factory edge, ready for immediate use without the need for initial sharpening.

  • Proven Longevity and Reduced Tool Wear

    Crafted from a high-toughness alloy, our chisels offer extended lifespan and superior performance compared to standard tools.

1 3

Have a question? We are here to help.

Fill out the contact form below, and our customer support team will get back to you as soon as possible.

FAQ

What kind of diamond dressing tools do you manufacture?

We manufacture a wide range of diamond dressing tools, including single-point diamond dressers, which are used for precision dressing and machining of grinding wheels, and multi-point dressers, which are designed for more intensive dressing. We also produce chisel dressers (chisel-shaped dressers such as those for Fortuna and Diaform) as well as specialised diamond pencils for dressing grinding wheels mounted on skate sharpening machines such as Prosharp, SSM, and Wissota. We also manufacture cutters for Reishauer machines that are used to produce worm wheels. Our tools can be either for hand use (Hand Diamond Dresser) or machine use, depending on the customer's needs.

What is the difference between single-point and multi-point diamond dressing tools?

Single-point diamond dressers use a single natural or synthetic diamond mounted in a housing, which provides high precision when dressing abrasive wheels.

Multi-point diamond dressers contain multiple diamond grains, which extends the life of the tool and provide more uniform dressing.

Can you manufacture diamond dressing tools according to my drawing and specifications?

Yes, we can manufacture diamond dressing tools to your specifications, including specialised bodies, diamond sizes, and parameters. Contact us to discuss the details.

What quality standards do your diamond dressing tools meet?

Our tools conform to international GOST and ISO standards, which guarantees their reliability and high-precision performance. The quality of our products is time-tested, and you can see for yourself.
